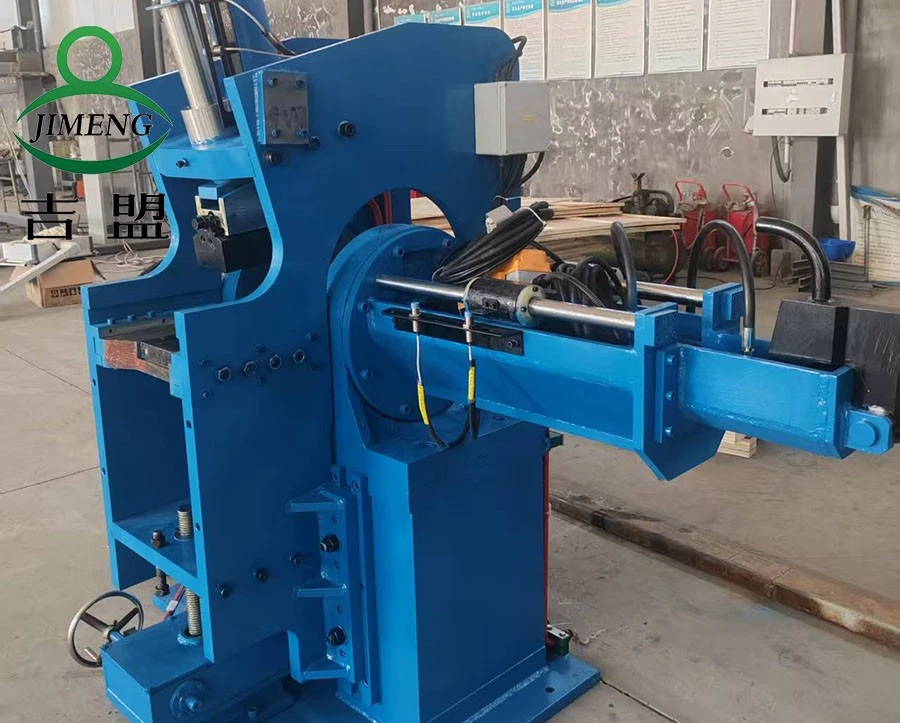

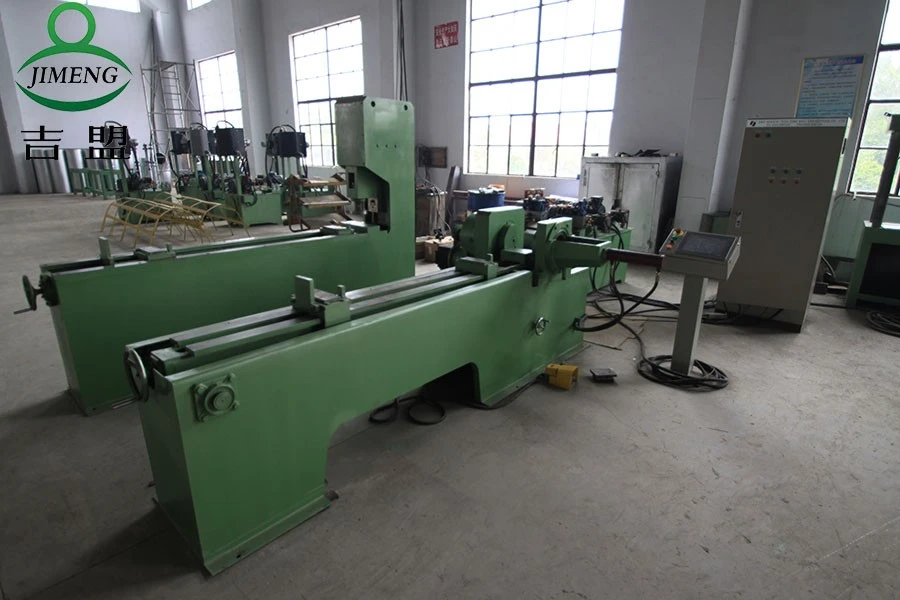

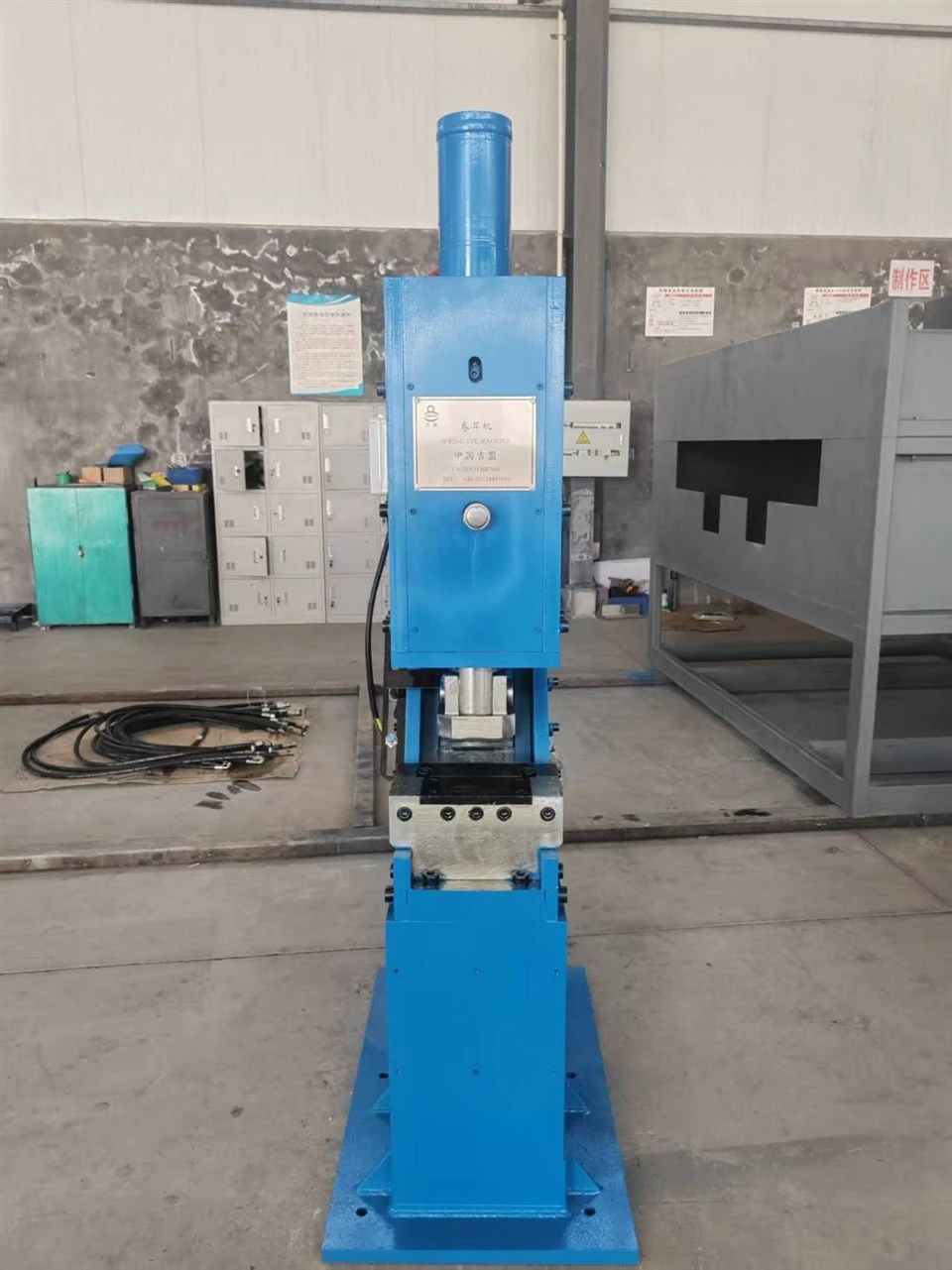

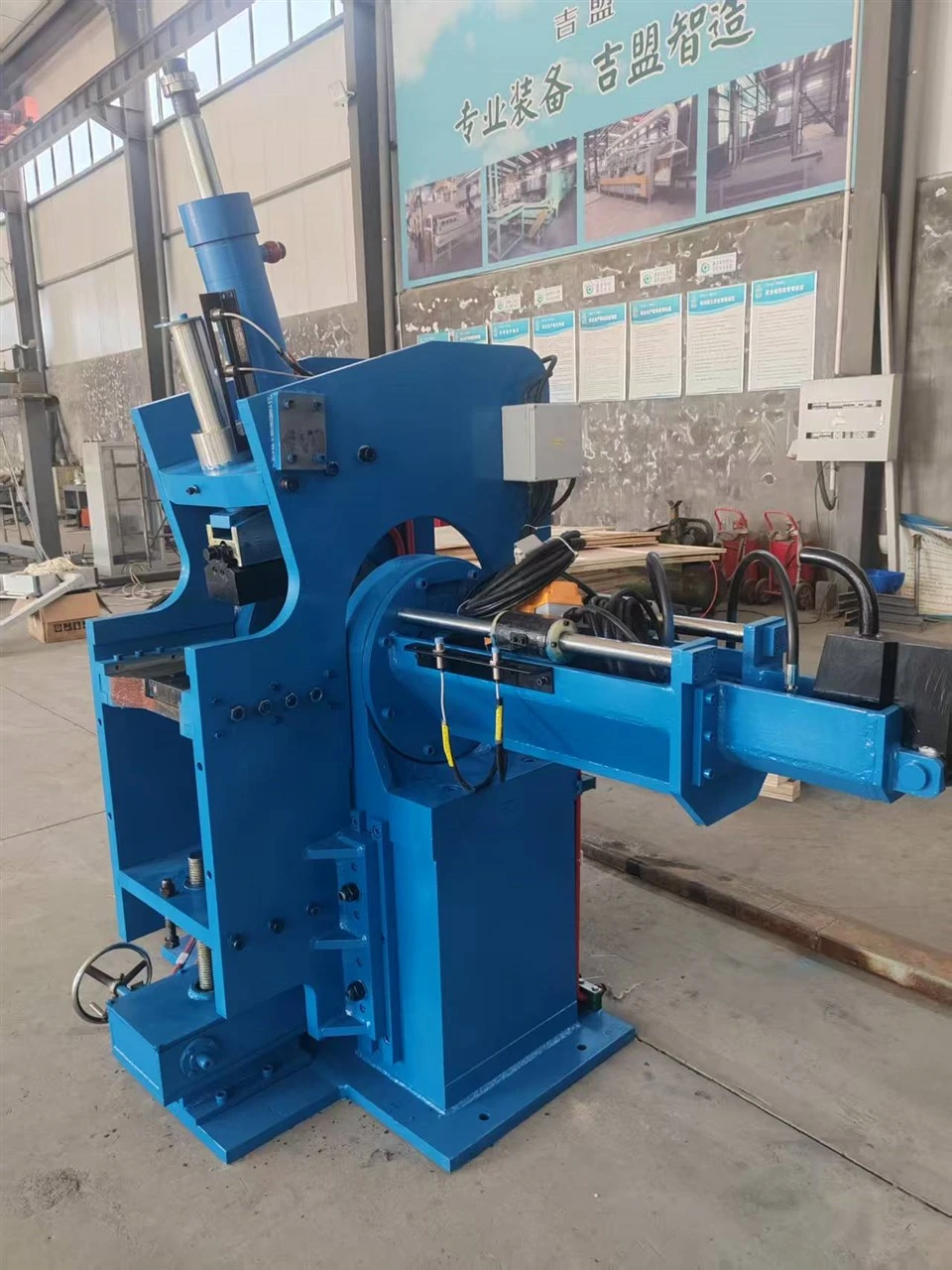

Automatic Leaf Spring Eye Rolling Machine
The spring eye is a critical connection part of automotive leaf springs, where bushings are installed to connect the suspension system. Accurate eye forming directly affects assembly performance, durability, and service life of the finished spring.
The Automatic Leaf Spring Eye Forming Machine is designed for automatic production of leaf spring eyes through heating, positioning, and forming processes.
The equipment integrates automatic feeding, end heating, eye forming, and unloading functions, providing a reliable solution for manufacturers producing truck leaf springs, trailer springs, and heavy-duty suspension components.
Automated Leaf Spring Eye Forming Process
Automatic Material Feeding
The leaf spring is automatically transferred into the working area, reducing manual handling and improving production flow.
End Heating
The spring end is heated to the required forming temperature to achieve suitable material flexibility before forming.
Eye Forming
The heated spring end is shaped into the required eye structure through hydraulic forming equipment and customized tooling.
Automatic Discharge
After forming, the finished spring is automatically transferred for the next production process.
This automated process helps manufacturers achieve consistent spring eye dimensions during high-volume production.
Technical Specifications
| Item | Specification |
| Equipment Name | Automatic Leaf Spring Eye Forming Machine |
| Application | Leaf Spring Eye Manufacturing |
| Operation Mode | Automatic |
| Heating Method | Gas Heating / Induction Heating |
| Forming Method | Hydraulic Forming |
| Control System | PLC + HMI |
| Material | Spring Steel |
| Application | Truck & Trailer Leaf Springs |
Role in Leaf Spring Manufacturing
A typical leaf spring production process:
Steel Cutting
↓
End Heating
↓
Eye Forming
↓
Spring Assembly
↓
Heat Treatment
↓
Shot Peening
↓
Painting & Inspection
The eye forming process creates the mounting structure required for installation in vehicle suspension systems.
FAQ
1.What is an Automatic Leaf Spring Eye Forming Machine?
It is an automated machine used to heat and form the eye ends of automotive leaf springs.
2.What leaf springs can this machine produce?
It is suitable for truck, trailer, commercial vehicle, and heavy-duty leaf springs.
3.Can the machine be integrated into a complete production line?
Yes. It can be combined with heating, forming, heat treatment, and finishing equipment.
4.Is the tooling customized?
Yes. Tooling can be designed according to different spring eye dimensions and production requirements.
